Acoustic Window (Top-hung Type)

Noise Reduction

About 4 - 5.5 dB(A)

Working Principle
Working Principle

The upper level is top hung window for ventilation while the lower level is fixed glazing or fixed window for lighting only. A horizontal fin projecting out from the bottom of the top hung window is needed to screen off the noise from entering into the room through the opened top hung window. As noise can be transmitted into the room through single or multiple reflections at the window pane and horizontal fin, absorbent may be applied on the reflecting surfaces to enhance noise reduction effectiveness. Noise reduction depends very much on the aspect ratio of window height to fin depth. In general, a reduction of 5 dB(A) can be achieved with an aspect ratio of about 0.6.

Average Reduction
4-5.5dB(A)
Average Reduction
Effectiveness
Effectiveness
5.5 dB(A)

Max. noise reduction

Equivalent to increasing
3.60
X
Equivalent to reducing
72
%
Traffic Volume
How it Works
How it Works

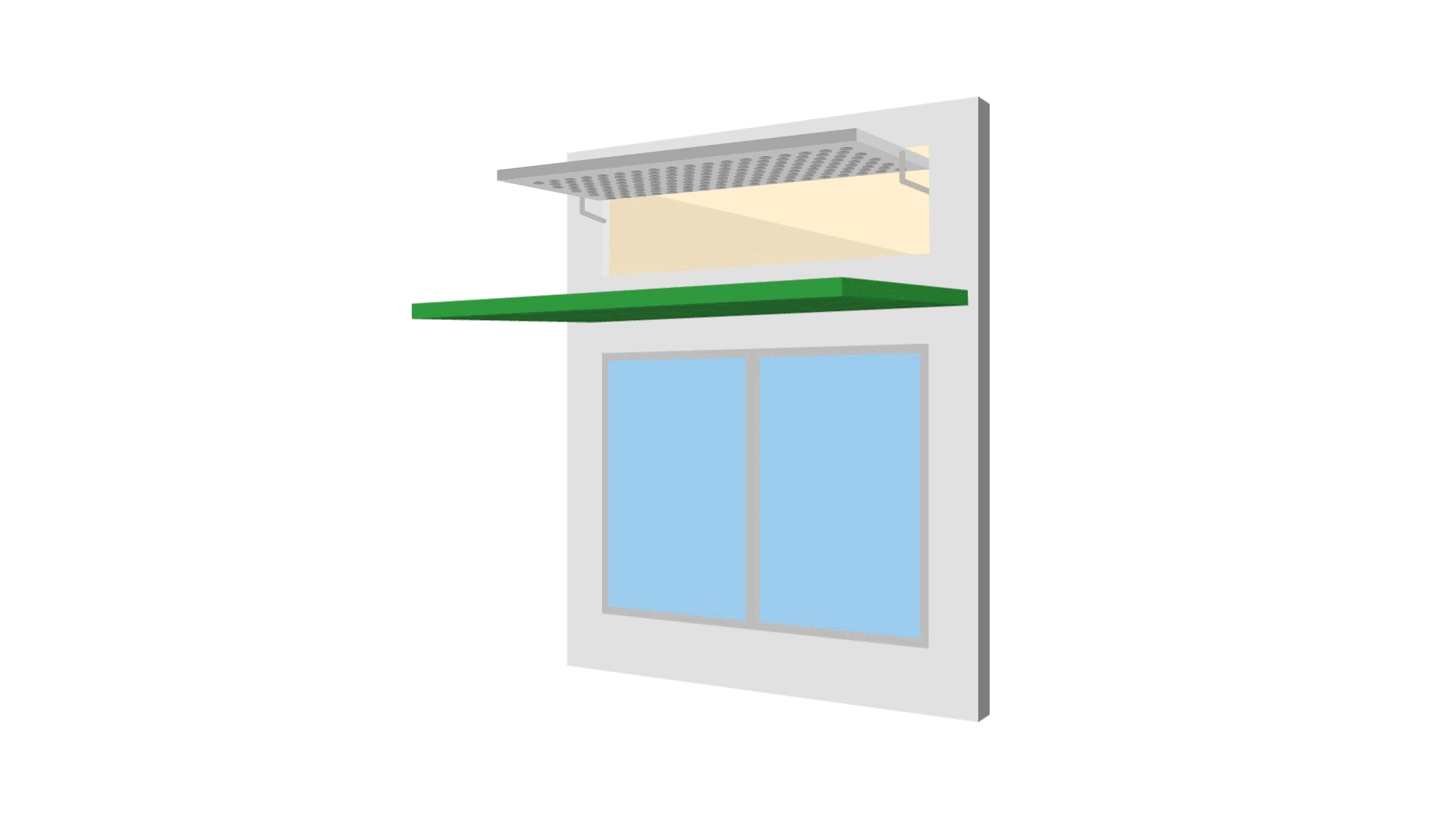

Shield noise

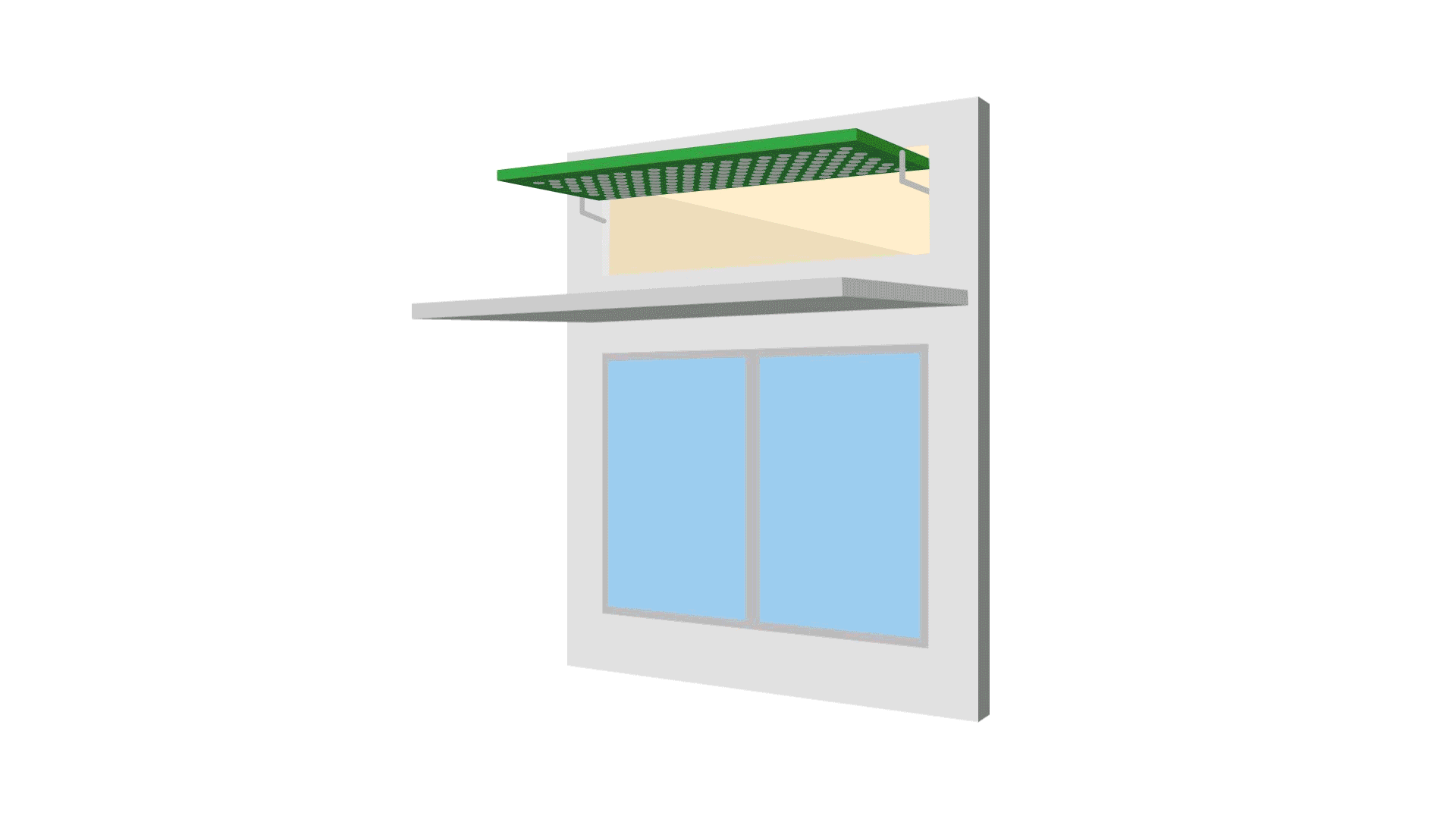

Absorb reflected noise

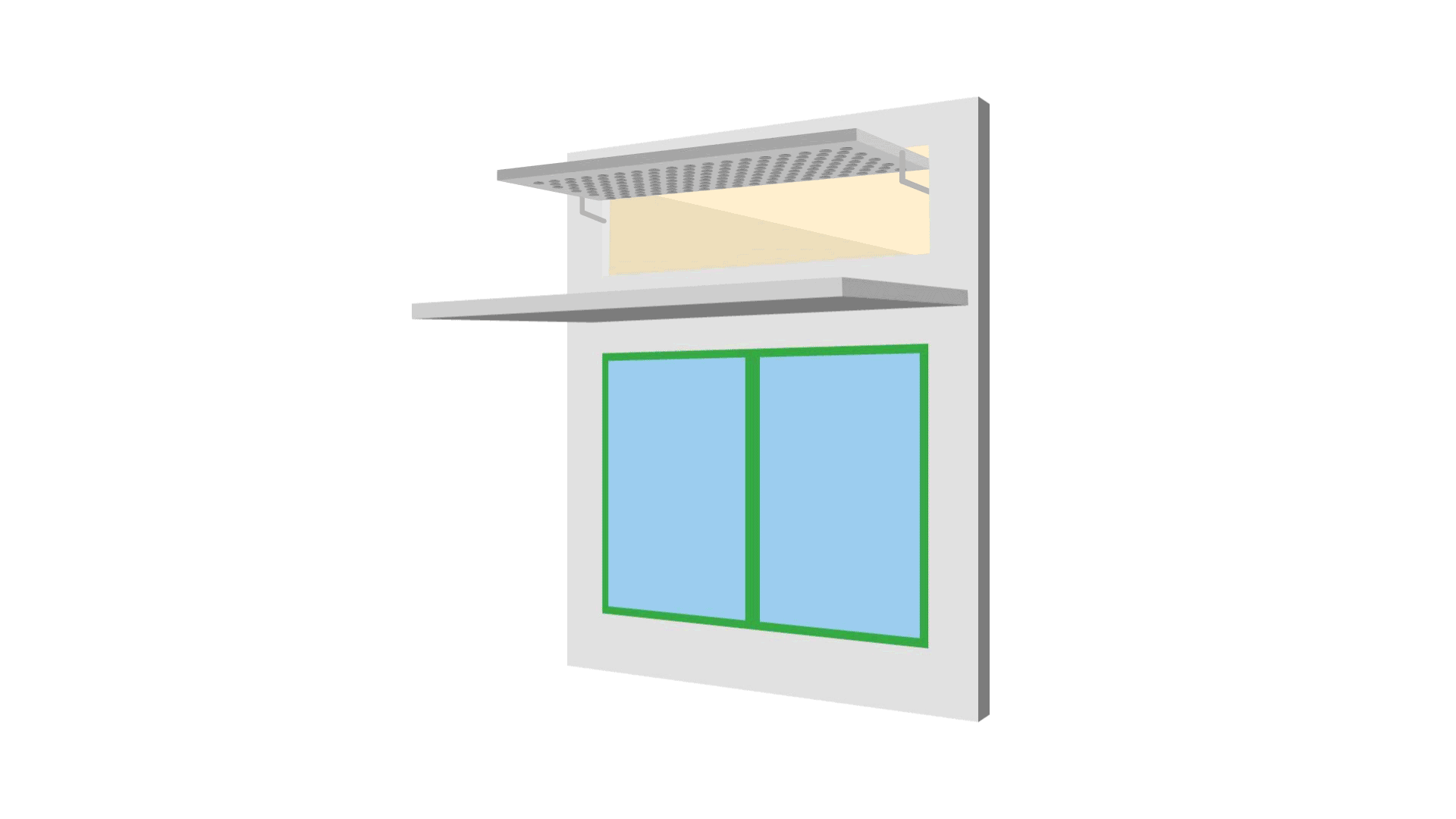

Block Noise
Project Example
Project Example
Summary
Reduce noise

INMD effectively reduce traffic noise impact, and facilitate housing development and supply.

Maintain air ventilation

Unlike traditional double glazing cum air conditioning, INMD reduce noise while maintaining natural air ventilation.

Easy application

INMD in window and balcony forms are available. They can be flexibly applied in housing designs.

Next Type of Measure

Enhanced Acoustic Balcony
